SAM575 Mobile Stage Rental
A 50' x 38' Stageline SAM stage with a 33-foot trim height and 94,000 lb of rigging, for major productions and citywide events.
Equipment RentalsStaging EquipmentMobile StagesSAM575

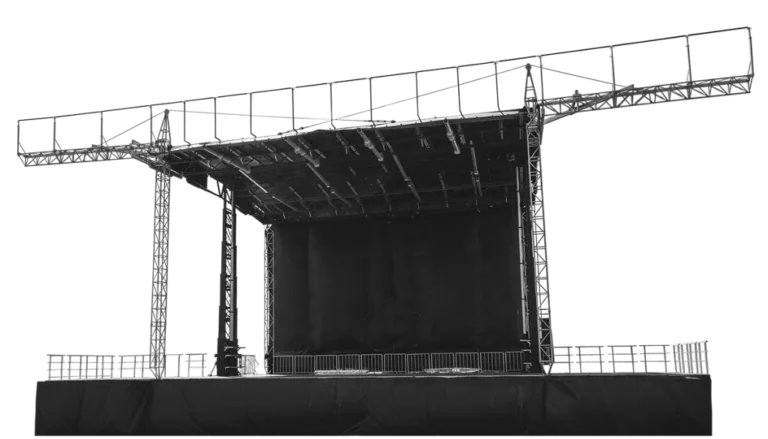

Stageline SAM575
The SAM575 at a Glance
The SAM575 is built for major productions: a 33-foot trim height, six rigging trusses, heavy lateral flybays and room to grow to 90' x 56' with wings and backstage.
Its crossover and loading dock connect straight to trucks, which speeds up big load-ins. Stageline recommends it for audiences of 10,000 or more; setup runs about 6 to 12 hours depending on configuration.
SAM575 Specifications
- Stage floor50' x 38'; up to 90' x 56' with wings and backstage
- Trim height33'
- Total rigging capacity94,000 lb
- Rigging trussesSix, at 10,000 lb each
- Setup timeAbout 6 to 12 hours, depending on configuration
- Recommended audience10,000 or more
- Wind rating115 mph without windwalls, 77 mph with windwalls (manufacturer's rating)
- Crossover and loading dock76' x 12', connects to a loading dock
- LED screen riggingSide screens 22' x 31', upstage 48' x 24', optional header
Specifications are Stageline’s published figures. Exact footprint, options and setup time depend on your site and configuration.
What the SAM575 Is Built For
Typical events for this size of stage.
Major concerts
Headline shows with full touring production.
Citywide events
Large public celebrations and holiday events.
Multi-day festivals
Main stages that stay up for the run of the festival.
Options and Add-Ons for the SAM575
Build the stage out to fit your show.
- Covered wings20' x 40' wings per side.
- Upstage crossoverCovered crossover and loading dock behind the stage.
- LED screensSide, upstage and optional header screen positions.
- Stageline-certified setupDelivered, set up and struck by our certified technicians.
- Barricade, power and accessFront-of-stage barricade, power distribution and ADA platforms.
- CrewStagehands, riggers and AV technicians for the rest of the build.
Compare Our Mobile Stages
From a 20-foot community stage to a 70-foot stadium roof.
SAM575 Rental FAQ
SAM575 Questions
Is setup included when I rent the SAM575?
Yes. Every SAM575 rental is delivered, set up and struck by our Stageline-certified technicians, so you do not need to supply stage labor.
How big is the SAM575?
Stageline lists the SAM575 stage floor as 50′ x 38′; up to 90′ x 56′ with wings and backstage. We confirm the full footprint, including wings and access, for your site during planning.
Where can I rent the SAM575?
We deliver mobile stages across Utah and Arizona, including Salt Lake City and the Phoenix Valley, and travel further for touring work. Ask about your date and location.
Can I add sound, lighting and video?
Yes. We rent audio, lighting and LED video packages, power distribution and barricade alongside the stage, and can supply the crew to run it all.
Check SAM575 Availability
Send your date, location and expected crowd size and we will confirm availability and send a quote.
- Quotes usually back within one business day
- Crew, equipment and logistics from one partner
- Serving Utah, Arizona and nationwide touring
